Key Advantage:
• UV LED
• Low drift, long life time and low cost
• AC optical signal, better SN perfromance
• Digital output, support RS485 Modbus protocal
• UV LED
• Low drift, long life time and low cost
• AC optical signal, better SN perfromance
• Digital output, support RS485 Modbus protocal
| Item | Technical Specification |
|---|---|
|
Interface |
RS-485, Modbus protocal |
|
Range |
0.3-20ppm Or 0.3-50ppm QSU |
|
Resolution |
0.01ppm |
|
Temperature Range |
0 ~ 50℃ |
|
IP rating |
IP68 |
|
Accuracy |
0.3ppm Or 3% FS QSU |
| Min. Detection Limit | 0.09ppm |
|
Linearity |
R2>0.90 |
|
Power |
DC 5V-12V 5% |
|
Body Materials |
316L and POM |
| Diameter |
Φ22x170.5mm |

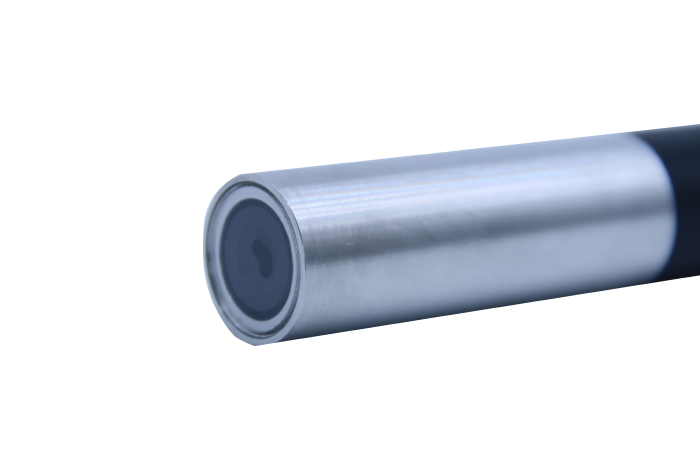

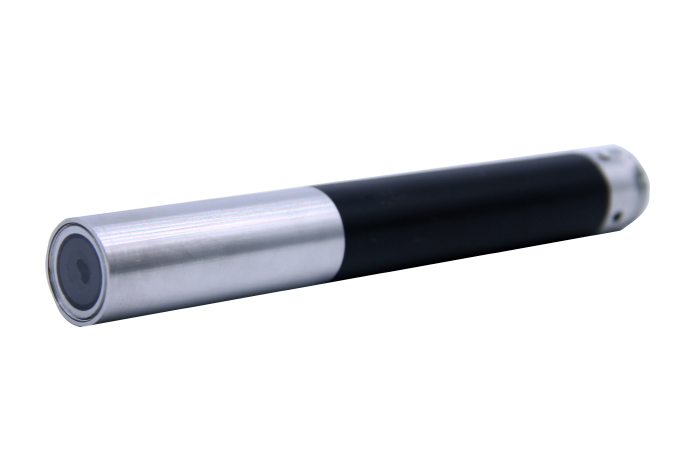

Online Oil In Water Sensor
611110
Principle ：
• UV fluorescence method
• Excitation wavelength： 360nm
• Emission ：460nm
